For BE-300 user. (PocketPC2002 is Here!)
Developed by BE-500 SDK (Japanese version CASSIOPEIA) for BE-300(MIPS).
Manual is here! (Under construction)

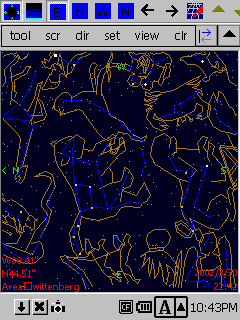

The Constellation chart board for BE-300.
This program is used as help to see the star in the night sky. Instead of the constellation chart board.
This program was converted from Japanese version.
I did not test this program by BE-300. (I've tested by the emulator which is for PocketPC 2002 Japanese version)
Link - pocketcity TOPIC ID=1037
English version data (English installer)
Installer type pStarData.zip (2002/03/29 Updated)
Simple ZIP file simpledata.zip (2002/03/29 Updated same data file as installer type)
There are explanation of constellations (*.p91 file). These files are translated by Translator-program. Then please make imagine for reading one. And you can modify the *.p91 files by pStarE on your hand. The *.p91 files are text file. The name of these files are constellation name. e.g. Andromeda is And.p91. Orion is Ori.p91. Please open it by notepad.exe on your PC.
If your BE-300 is not enough available memory,
Please install to CF memory card directory.
/My Documents/pStar/*.* <== extract into here ! (simpledata.zip)
English version exe (English installer)
pStarE.zip (2002/03/28 Updated, with installer)
pStarE.exe (raw exe file for BE-300)
I think all Japanese was translated to English, If you found a Japanese character (as small square), Please tell me when it appeared.
If your BE-300 is not enough available memory, you can copy .exe into your CF
memory card directory.
/Program files/PIE/pStarE.exe <=== here!
When you inserted the CF memory card, the BE-300 will show the program icon.
Please write a comment into my guest book.
1. Download pStarE.zip and pStarData.zip.
2. Extract the zip files on your PC.
3. After invoking the sync-program to your BE-300, click the Setup.exe which
you extracted.
Or
Copy into the CF memory card directory. (Skip step 4)
4. Please install them to CF memory card, because There are large for
main-memory.
If you've installed into main-memory, you will use pStarE only.
After installation (Both).
1. Invoke pStarE
2. Wait a minute, two kind of dialogue are appeared. One is select-data,
One is for share-ware.
Please specify the Data-file is "My Documents/pStar/pStar.BE3"
For share-ware-dialogue, please 'Close', and Try=Yes.
First time: when you specify the Data-file: you must select exit program
once.
The Data-file dialogue is appeared until you specify the data-file
completely.
The share-ware dialogue is appeared until you specify the license-key.
There is no limitation of function in the try-version (not yet license-key).
3. Re-invoke pStarE.
4. Select 'MENU'-'set'-'Area', Its means "Where are you". You must specify your latitude and time (But I don't know summer-time system).
5. Select 'MENU'-"TRI-MARK", appear a menu, Select "add tool bar".
6. Select 'MENU'-'set'-'option', Please setting some value and options.
7. If you checked 'MENU'-'set'-'tap-*', It means "If you tap a star, * is appeared".
And if you have any questions, please write into my guest book.
8. If you like this program, please get the license key.
How to get the license key.(license key is free, only registration.)
Buy a picture-post-card in your region.
Buy stamp (amount for international air-mail).
Send it to me, as following address.
Must write "AIR MAIL" on your card.
Address:
JAPAN
Sagami-Ono 4-5-2-1201
Sagamihara-city
Kanagawa-Pref.
228-0803
P.I.E. Ltd.
Shigeto OKUBO.Or
Print this, and paste on the card completely. I don't know "this matter needs the extra-fee" in your country, please ask to your post office.
Please write follows.
1: Your e-mail address
2: Your address and name.
3: Comment for this program (pStarE)When I received the picture-post-card, I will send license-key to you via E-MAIL.
Please see post card collection.
I'm making the manual of pStarE on my guest book. please see and advise me. (click here!)
Please see the constellations information http://www.dibonsmith.com/ . That page was found by the Internet search engine. (yahoo.com)
Shigeto OKUBO mailto:shigeto@pienet.co.jp?subject=pStarE
P.I.E. Ltd.
Address
Sagami-Ono 4-5-2-1201
Sagamihara-city
Kanagawa-pref.
228-0803
JAPAN
Shigeto OKUBO
P.I.E. Ltd.
FAX: +81-42-765-7179 (International : 81 is country code
of JAPAN)
(042-765-7179. domestic)
History.
Convert Start 2002/03/16 ( E-mail from USA)
MENU, Dialog, Conste., messagebox....???
Convert a little 2002/03/18
Directions... (North, East, South,
West was in Japanese)
Add Message Board 2002/3/18
Tool bar 2002/03/25
English version data 2002/03/25
=================================== Older ===================
== Do not use these version ==
Data file is still Japanese. (You can not see Bright Star name, Messier Name, etc.)
okubo/Data/ALMOST_DATA.zip (Data files: No installer)
okubo/BE500/pStarData.zip (Data file installer for BE-500)
I will re-make these data file for English. (I will use Machine Translator, first time).
==================================== Older ==================
== Do not use these version ==
Please Copy to your "Program files/PIE" folder. (CF card or Main Memory)
I recommend CF memory card.
Or,
Install the Japanese version, And then replace the program (exe file).
okubo/BE300/pStarE.exe (2002/03/25)
For English Data version. Data-Name is pStar.BE3 (Do not use pStar.dat)
okubo/BE300/pStarBE3.exe (2002/03/25)
Tool bar, license key message, (Still some Japanese)
okubo/BE300/pStarBE5.exe (2002/03/18)
Message, Direction, ....(Still many Japanese)
okubo/BE300/pStarBE5.exe (2002/03/16)
Menu, Dialog, Message ....(many Japanese)
